Height Adjustable

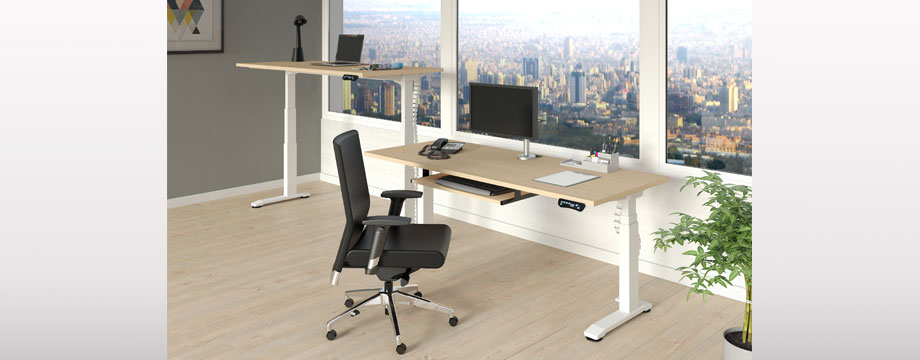

APO-E1 - Extended Electric Height Adjustable Desk Series

• Extended range 25.5’’-49.2’’ (includes 1’’ top)
• Available with 1’’ or 1.5’’ laminate top in any Heartwood laminate finish
• Straight desk or corner desk (max 30’’ X 96’’)
• All White Heavy Duty 3-stage steel frame design
• The anti-collision function automatically stops motors when desk hits an immovable object.
• Keypad controller has 4 programmable pre-set heights and USB port for desktop charging.
• Operated at 1.5’’ per second
• UL Certified
• Ships Ready-to-Assemble (RTA) - pre-drilled/installed insert nuts for fast assembly
• Limited lifetime warranty on laminates; 5-year warranty on electric and steel components
• Built in Canada

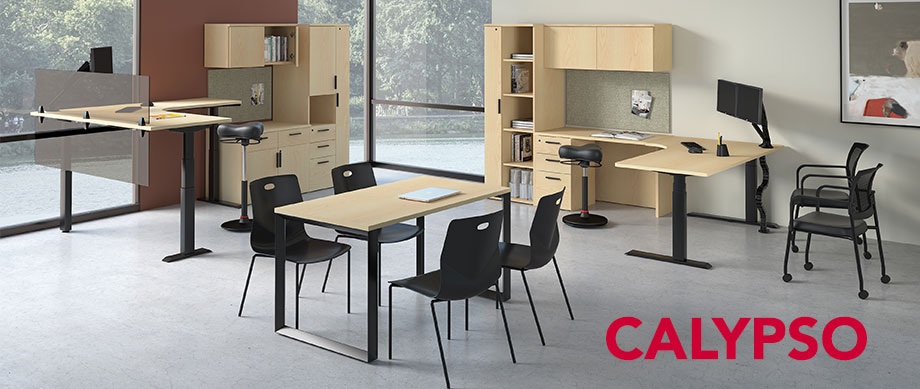

CAL-E1 - Base Specifications (Electric Height Adjustable)

• Quick assembly (easy fold leg design)
• Maximum footprint 94.5”- 94.5” (metric top 96 x 96)
• Extended height range 24.4” - 50” excluding top
• Heavy Duty 3-stage steel frame design
• Operated at 1.3’’ per second
• Actuator system with synchronized motor driving each leg
• The anti-collision function automatically stops motors when desk hits an immovable object
• Lift capacity (265lbs for 2 leg base); (320lbs for 3 leg base)
• Keypad has 3 programmable positions including home
• Control panel can be moved once mounted
• Includes adjustable glides
• BIFMA certified (2 leg model)
• CSA/UL Certified
• Whisper quiet <50dB
• Extended warranty
  • 15 Year Structural
  • 7 Year Mechanical

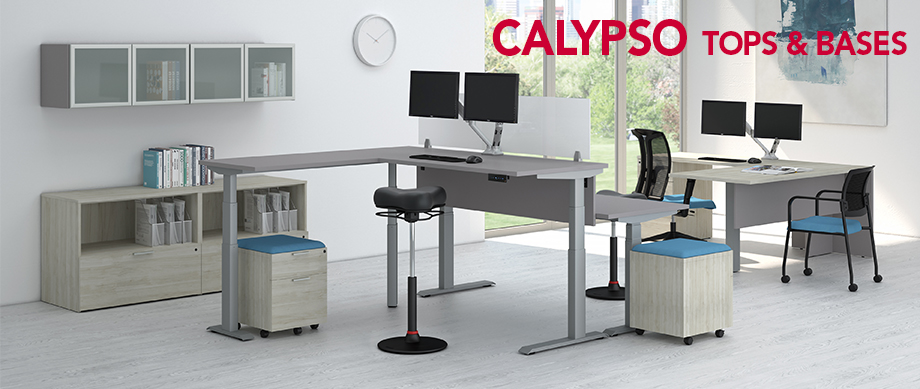

Calypso Tops

• 1’’ thick laminate tops available (special quote pricing required for 1½’’ thick tops)
• Extended corner module and rectangle tops include a grommet, return shell tops do not
• For custom grommets, please contact customer service
• Custom sizes available, contact customer service for pricing. For simple width changes, use the next price rule.

Ordering Example: For CAL-REC-2462 use CAL-REC2466

• Edges: Edges all finished in a matching 3mm PVC edge banding. Banding changes to an alternate Heartwood standard colour are available at no extra charge.
• Built in Canada
• Optional corner module extended foot available for larger 2-leg desks.

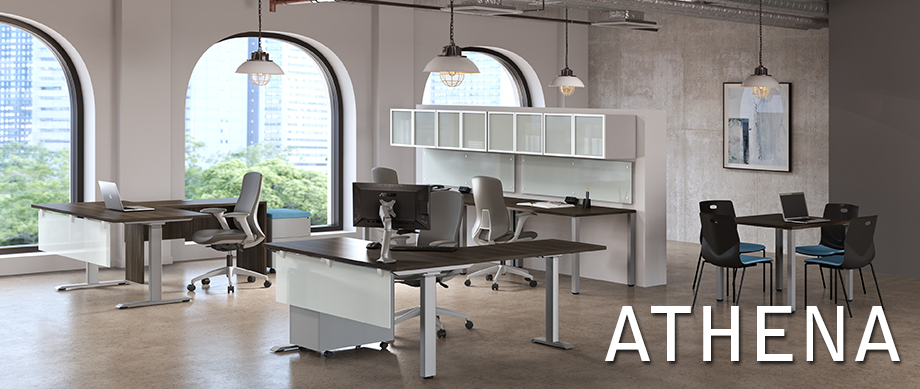

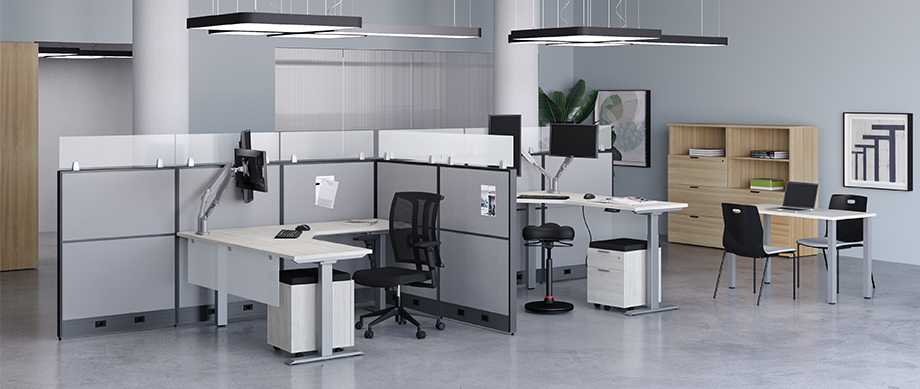

ATH-E1 - Base Specifications (Electric Height Adjustable)

• Height Range: 27.5”- 45.5” (not including 1”top)
• Available Finish: Silver (SL) or Black (BL)
• Sturdy, 2-stage steel frame design
• Actuator system with dual synchronized
• motor driving each leg
• Anti-collision function
• CSA/UL Certified
• BIFMA Certified (2 LEG ANSI/BIFMA x 5.5-2014)
• Quick assembly design
• 4 programmable memory positions
• Operated at 1’’ per second
• Whisper quiet <50dB
• Max weight capacity: 2 leg base - 220 lbs & 3 leg base - 330 lbs
• Includes adjustable glides
• Limited lifetime warranty on laminates; 2 year warranty on electric and 5 years warranty on
• steel components
• Compatible with Calypso tops
• Compatible with modesty or desktop panels
• Low power consumption in standby mode

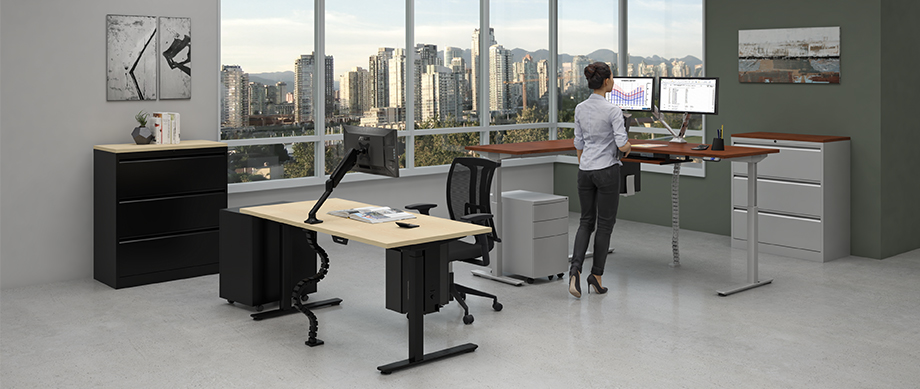

OLY-E1 - Base Specifications (Electric Height Adjustable)

• Maximum footprint 76.75”- 76.75”
• Sturdy, 2-stage, steel frame design
• Operated at 1.5” per second
• Single motor / Hex rod drive system
• The anti-collision function automatically stops motors when top hits an immovable object
• Max weight capacity of base only (excludes top) is 220 lbs (100kg)
• Keypad has 4 programmable memory positions
• Includes adjustable glides
• Can be converted into a mobile unit with optional Olympus casters.
• CSA/UL Certified
• Whisper quiet < 50dB

ATL-E1  - Single Leg Base Specifications (Electric Height Adjustable)

• Quick assembly single leg design

• Suitable for sit to stand solutions for smaller top sizes (24’’-42’’wide rectangle tops or corner module tops)
• Great to convert existing fixed height L-shape or U-shape suites to height adjustable (re-use existing bridge or return shell tops and mount onto ATLAS base)
• The perfect option for tight spaces
• Sturdy, 3-stage, steel frame construction
• Operated at 1” per second
• Quiet operation <55dB
• 4 programmable memory positions
• Actuator system with a heavy-duty motor driving the single leg
• Includes adjustable glides - 10mm adjustable
• Adjustable Anti-collision feature
• CSA/UL certified
• Low power consumption in standby mode
• Lifting capacity: 130lbs
